Boards¶

The following details the default settings for various devices connected to boards

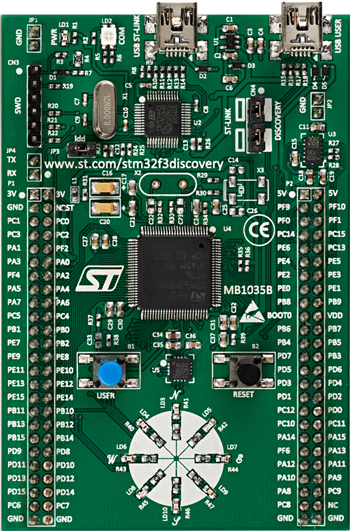

STM32F3Discovery¶

LEDS¶

GPIO
PE8
PE9
PE10
PE11
PE12
PE13
PE14
PE15
PF1
PF2
PF3

Console¶

Console
USART_PORT2

EK TM4C1294XL (Tiva C Connected Launchpad)¶

Chipset tm4c1294

LEDS¶

GPIO
PF0
PF4
PN0
PN1

Console¶

Console
UART0

SSD1306¶

I2C Port	I2C Address
I2C1	0x78

Unix based simulator¶

Console¶

Console
STDIO_ID

SDL Screen Emulation¶

Width	Height
320	200

X86 based simulator¶

Console¶

Console
0

HY 24’’ STM32F103VET6 based board¶

Chipset stm32f103vet6

LEDS¶

GPIO
PC6
PC7
PD13
PD6

Console¶

Console
USART_PORT2

ESP8266¶

Console¶

Console
UART0

CC3200-LAUNCHXL (CC3200 Connected Launchpad)¶

Chipset cc3200

LEDS¶

GPIO
PB1
PB2
PB3

Console¶

Console
UART0

TI MSP430F5529¶

Chipset msp430f5529

LEDS¶

GPIO
PA0
PD7

Console¶

Console
USCIA1

MMC¶

SPI Port	MOSI Pin	CS Pin
USCIB1	PD1	PC7

ENC28J60¶

SPI Port	CS Pin	Int. Pin
USCIA0	PC5	PA4

DOGS102X6¶

SPI Port	RST Pin	CS Pin	CD Pin	Backlight Pin
USCIB1	PE7	PG4	PE6	PG6

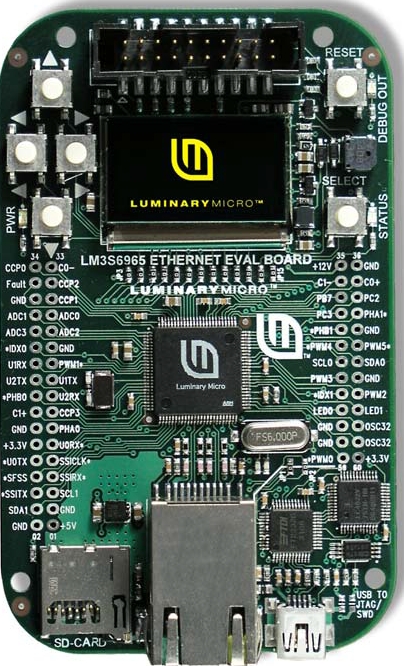

EK LM3S6965¶

Chipset lm3s6965

Console¶

Console
UART0

MMC¶

SPI Port	MOSI Pin	CS Pin
SSI0	PA5	PD0

SSD1329¶

SPI Port	RST Pin	CS Pin	CD Pin
SSI0	PC6	PA3	PC7

Trinket Pro¶

LEDS¶

GPIO
_PB5
_PB6

Console¶

Console
USART0

SSD1306¶

I2C Port	I2C Address
0	0x78

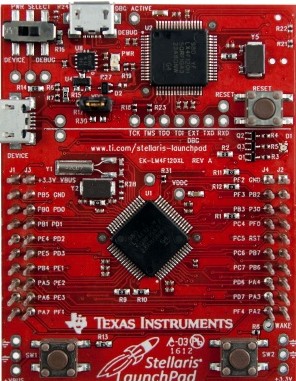

EK LM4F120XL (Stellaris Launchpad)¶

Chipset lm4f120xl

LEDS¶

GPIO
PF1
PF2
PF3

Console¶

Console
UART0

SSD1306¶

I2C Port	I2C Address
I2C1	0x78

MMC¶

SPI Port	MOSI Pin	CS Pin
SSI0	PA5	PB6

ENC28J60¶

SPI Port	CS Pin	Int. Pin
SSI1	PE3	PF4

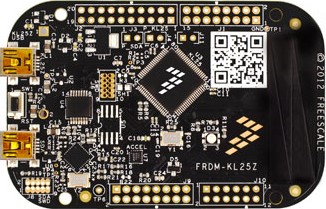

Freescale FRDM-KL-25Z¶

Chipset frdm_kl25z

Console¶

Console
0

‘ARMJishu’ 28’’ STM32F103RB based board¶

Chipset stm32f103rbt

LEDS¶

GPIO
PA2
PA3
PB2

Console¶

Console
USART_PORT1

MMC¶

SPI Port	MOSI Pin	CS Pin
SPI_PORT1	PA7	PB7

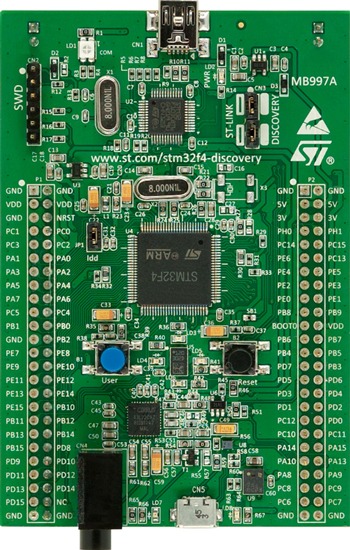

STM32F4Discovery¶

Chipset stm32f407xx

Console¶

Console
USART_PORT2

SSD1306¶

I2C Port	I2C Address
I2C_PORT1	0x78

ENC28J60¶

SPI Port	CS Pin	Int. Pin
SPI_PORT1	PC5	PB1

EK TM4C123GXL (Tiva C Launchpad)¶

Chipset tm4c123g

LEDS¶

GPIO
PF1
PF2
PF3

Console¶

Console
UART0

SSD1306¶

I2C Port	I2C Address
I2C1	0x78

MMC¶

SPI Port	MOSI Pin	CS Pin
SSI0	PA5	PB6

ENC28J60¶

SPI Port	CS Pin	Int. Pin
SSI1	PE3	PF4

ESP8266 Serial Bridge¶

Serial Port
UART4

PCD8544¶

SPI Port	RST Pin	CS Pin	CD Pin	Backlight Pin
SSI0	PF3	PB6	PB4	PF2

ST7735¶

SPI Port	RST Pin	CS Pin	CD Pin	Backlight Pin
SSI0	PF3	PB6	PA6	PF2

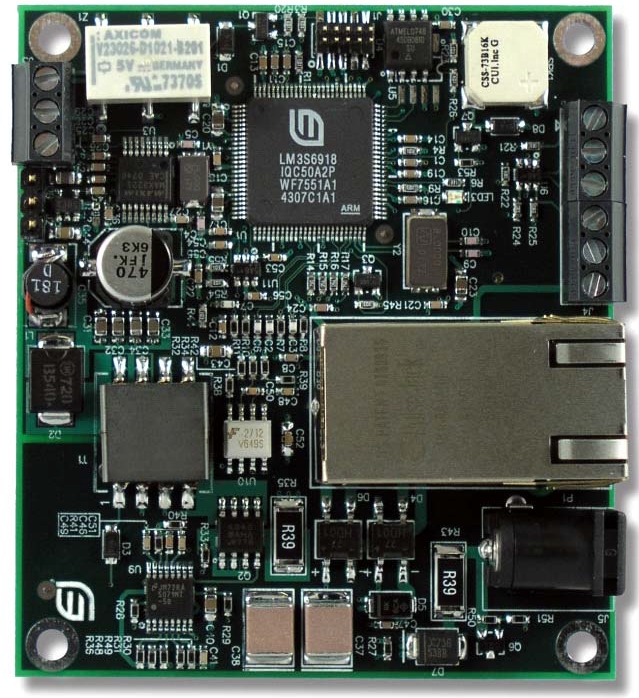

RDK-IDM (LM3S6918)¶

Chipset lm3s6918

Console¶

Console
UART1

MMC¶

SPI Port	MOSI Pin	CS Pin
SSI1	PE3	PE1

STM32F429IDiscovery¶

Chipset stm32f429xx

LEDS¶

GPIO
PG13
PG14

Console¶

Console
USART_PORT3
